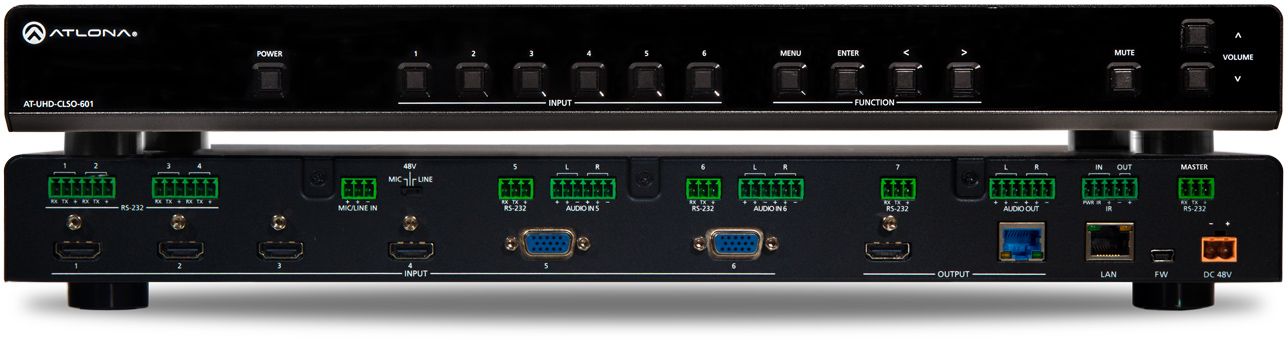

Atlona® 4K/UHD Six-Input Multi-Format Switcher

Model #: AT-UHD-CLSO-601

At a Glance

The AT-UHD-CLSO-601 is part of the Atlona CLSO Series of multi-format switchers and matrix switchers for presentation AV systems. The CLSO Series features built-in HDBaseT extension, plus powerful control and audio system integration features. See below for more information.

WarningProposition 65 Warning for California Residents
Atlona® 4K/UHD Six-Input Multi-Format Switcher

General Specs

Product Weight (lbs.)6.90
Manufacturer Warranty10 Year

General

FirmwareMini-B USB
HDBaseTRJ45 (8P8C)
HDMIType A
VGA15-pin HD d-sub, accepts RGBHV, component, composite, or S-video with adaptor
LANRJ45 (8P8C), TCP/IP control
IR5-pin captive screw
RS-2323-pin captive screw
Audio5-pin captive screw
Power2-pin, 48V captive screw
Operating32°F to 122°F
Storage-4°F to 140°F
Humidity20 to 90% non-condensing
Consumption33W
Idle Consumption3.1W
SupplyInput: AC100~240V 50/60Hz; Output: DC 48V/3.125A
H x W x D1.73 x 17.08 x 10.04 (inch)
H x W x D w/Feet2.17 x 17.08 x 10.04 (inch)
Rack Unit1
Weight6.90lbs
Shipping Weight11.02lbs

Atlona® 4K/UHD Six-Input Multi-Format Switcher

Model #: AT-UHD-CLSO-601
134921
Model #: AT-UHD-CLSO-601
Atlona
$99,999.00

Call for Best Price

At a Glance

The AT-UHD-CLSO-601 is part of the Atlona CLSO Series of multi-format switchers and matrix switchers for presentation AV systems. The CLSO Series features built-in HDBaseT extension, plus powerful control and audio system integration features. See below for more information.

Get to know this product.

Product Compatibility

The AT-UHD-CLSO-601 features an HDBaseT output and is compatible with Atlona UHD-EX Series receivers. This switcher can conveniently be controlled by the ANC-108D button control panel.

The Atlona AT-UHD-CLSO-601 is an advanced six-input, multi-format switcher with built-in 4K scaling and mirrored HDBaseT and HDMI outputs. It simplifies classroom and small office system integration by providing four HDMI and two multi-function analog inputs. The CLSO-601 is designed to be the central component of an automated AV system. Automatic display control powers the display automatically whenever a source is connected or disconnected. Automatic input selection on the CLSO-601 works by sensing the presence of any video signal.

The CLSO-601 combines the benefits of a scaling switcher with automatic display control and automatic input selection, and the advantages of HDBaseT signal transmission to extend AV, power, control, and Ethernet over a single cable. The switcher enables input selection from the front panel, RS-232, or TCP/IP commands. The CLSO-601 is ideal for applications where multiple signals with different resolutions must be optimized for a display. Professional audio features such as a microphone input with 48 volt phantom power and ducking are also included, allowing the switcher to address a wide array of AV needs often encountered in classrooms, conference rooms, boardrooms, training rooms, and other presentation settings. In addition to automated input selection, the switcher can be controlled via the Atlona AT-ANC-108D button control panel.

Automatic Display Control

The CLSO-601 provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the CLSO-601 can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the CLSO-601 forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The CLSO-601’s display control capability can also be triggered by an external control system.

A power button on the front panel can be used for manual on/off control of either the CLSO-601 or the display. Front panel volume controls are also available to control the display’s internal audio, or another device with volume control, such as a DSP or another switcher.

* Consumer Electronics Control (CEC): Atlona does not guarantee the function of CEC with all televisions. We can confirm proper operation with many current Samsung, Panasonic, and Sony TVs. Many manufacturers do not support the CEC “off” command when sent from a source and older TVs use proprietary commands. Atlona only supports those TVs that follow CEC command structure from HDMI 1.2a and support the “off” command when issued by a source. We encourage any dealer to get evaluation product from Atlona prior to designing a system around this control technology or be prepared to use other methods to control their displays if Atlona CEC is not compatible with the installed displays.

Reliable Auto-Switching

The CLSO-601 automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.

RS-232 Distribution to Sources and Destinations

A bi-directional RS-232 connection is available at every local input and output on the CLSO-601. Along with RS-232 signal distribution built into each HDBaseT link, the switcher has a powerful capability to route control signals to each source and display as a separate zone. The CLSO-601 lowers the cost of a third-party control system by allowing one with fewer RS-232 interfaces. For further integration convenience, the CLSO-601 can extend Ethernet from a control processor, and features IP to RS-232 translation for converting TCP/IP commands to RS-232. This provides the flexibility of extending TCP/IP or RS-232 control to the display over HDBaseT.

Applications

Complete system applications – The CLSO-601 provides a comprehensive yet value-oriented AV integration solution for classrooms, huddle rooms, small conference rooms, and other presentation spaces.

Conference rooms and meeting rooms – The CLSO-601 conveniently provides automatic switching and display control for simplified user operation, especially when laptops are brought into the system.

Presentation spaces where two displays are needed – This switcher can be installed in a lectern to serve a confidence monitor, plus the primary display in a remote location.

Configured and Managed by AMS

The Atlona Management System (AMS) is a powerful network software platform ideal for configuring, managing, and monitoring the CLSO-601 and other Atlona IP-controllable devices over a LAN, WAN, or VPN. AMS is available free from Atlona, and greatly streamlines installation and maintenance of several Atlona products throughout a facility or enterprise, from a standard web browser.

Four HDMI inputs

Digital inputs to support up to four DVI, HDMI and DisplayPort sources

Works with PCs, Blu-ray players, document cameras, teleconference systems, wireless solutions with industry standard digital audio/video outputs

Two multi-function analog inputs on 15-pin HD connectors

Accepts RGBHV, component, S-video, or composite signals using common adaptors and break out cables

Provides input options for legacy analog sources

Mirrored, dual outputs on HDBaseT and HDMI

Supports dual display applications with both local and extended distance displays up to 330 feet (100 meters)

Eliminates cost associated with extra extension components; simplifies installation. HDMI output allows additional HDBaseT transmitter for dual long distance applications

Automatic display control

Automatically changes projector power state based on active or standby mode of switcher. Control signals transmitted via CEC, IP, or RS-232.

Eliminates need for complex control system in AV systems. Enables display and volume control. CEC enables control of low-cost consumer displays.

Automatic input selection using video detection technology

Selects active input when sources are connected or if there is a change in source power status

Eliminates need for complex control system in AV systems

4K/UHD @ 30 Hz capability

Compatible with Ultra High Definition sources and displays

Supports high resolution applications such as CAD, desktop publishing, and detailed financial reporting

Built-in 4K scaler

Scales to and from most resolutions up to 4K to optimize content from any source to any monitor or projector up to 4K. Down-scaling allows 4K sources to be displayed at 1080p or less.

Eliminates the need for external scaling components

AV, Ethernet, and control over HDBaseT

Delivers 4K/UHD video, audio, 100BaseT Ethernet, and control through a single cable

Eliminates multiple cable runs between source, control system router and display

Power over Ethernet for remote-powered HDBaseT receiver

Industry standard IEEE 802.3af PoE supplied by the switcher over HDBaseT

No local AC outlet required saves time and integration costs

TCP/IP, RS-232, and IR, control of switcher

Flexible control options for compatibility with third-party control systems; RS-232 controlled from HDBaseT connection

Reduces integration time and costs

EDID management

Manages EDID communications between source and switcher; allows integrators to force sources to preferred resolution

Ensures desired audio formats and video resolutions are provided to the AV system; eliminates the need for EDID management device

HDCP management

Allows non-protected material from PCs to pass to non-compliant displays and teleconference systems while protected content is not transmitted

HDCP compliance can be switched on/off from control systems for use with non-compliant displays, streaming devices, and codecs

Balanced line/mic input with 48V phantom power

Provides professional audio input for wired and wireless microphones

Saves installation costs by eliminating external audio mixer

Microphone ducking with advanced controls

Automatically reduces program audio levels when mic is used

Ensures optimized voice-over performance

Audio de-embedding

De-embeds PCM audio from HDMI inputs to analog audio output

Provides audio signal routing to sound system

Independent audio input switching

Switches analog audio inputs separately from video sources; allows analog audio signal embedding for DVI sources

Simplifies audio signal management from DVI sources

Balanced, stereo audio output on 6-pin captive screw connector

Interfaces with analog commercial sound systems

Maintains proper audio gain structure; eliminates adaptors

Adjustable volume and EQ

Features independent gain control for each input, master audio level control, bass and treble EQ adjustment

Optimizes audio signals eliminating the need for an external mixer

Front panel volume and mute controls

Volume up and volume down buttons adjust output level to sound system

Provides quick level adjustment for operators

Easy, GUI-based configuration using integrated web server

Offers menu-based configuration of network settings, RS-232 settings, input switching, EDID and HDCP management and audio

Allows fast configuration of internal product settings and troubleshooting from a tablet, smart phone or PC in the field

IP to RS-232 translation

Converts TCP/IP commands to RS-232 commands for output to external devices

Enables single IP connection to control processor to control both IP and RS-232 connected devices. Faster installation

Eight RS-232 ports

Multiple bidirectional, RS-232 ports to control other devices in the system

Reduces cost associated with complex control processors

Ethernet, RS-232 and IR HDBaseT insertion

Adds control signals to the HDBaseT transmission including Ethernet, RS-232 and bi-directional IR

Simplifies display control from third-party control systems

Rack mountable 1U, full rack width enclosure

Installs easily in rack mounted systems with included 19” rack and wall mount brackets

Reduces installation time and cost

Works with AMS

This IP-controllable product can be remotely managed by the Atlona Management System software

Integrates product configuration, management, and updates to reduce installation time and enable remote support

Included accessories

User guide, desktop power supply, detachable power cable, IR hand held remote control, rack mount bracket kit

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in residential and commercial systems

Specify, purchase, and install with confidence

Specifications

General Specs

Product Weight (lbs.)6.90
Manufacturer Warranty10 Year

General

FirmwareMini-B USB
HDBaseTRJ45 (8P8C)
HDMIType A
VGA15-pin HD d-sub, accepts RGBHV, component, composite, or S-video with adaptor
LANRJ45 (8P8C), TCP/IP control
IR5-pin captive screw
RS-2323-pin captive screw
Audio5-pin captive screw
Power2-pin, 48V captive screw
Operating32°F to 122°F
Storage-4°F to 140°F
Humidity20 to 90% non-condensing
Consumption33W
Idle Consumption3.1W
SupplyInput: AC100~240V 50/60Hz; Output: DC 48V/3.125A
H x W x D1.73 x 17.08 x 10.04 (inch)
H x W x D w/Feet2.17 x 17.08 x 10.04 (inch)
Rack Unit1
Weight6.90lbs
Shipping Weight11.02lbs
