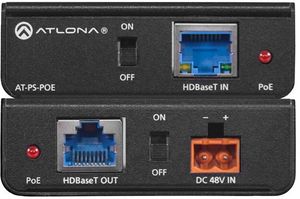

Atlona® Power Over Ethernet Mid-Span Power Supply

Model #: AT-PS-POE

At a Glance

The Atlona AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows two PoE-powered products to work together. The power supply features two power switches to selectively send power up- or down-stream.

WarningProposition 65 Warning for California Residents
Atlona® Power Over Ethernet Mid-Span Power Supply

General

Consumption15.2W
SupplyInput: AC100-240V ~ 50/60Hz; Output: 48V/0.83A
H x W x D0.96 x 2.87 x 2.77 (inch)
Weight0.09 lbs

General Specs

Product Weight (lbs.)0.09
Depth (in.)2.77
Width (in.)2.87
Height (in.)0.96
Manufacturer Warranty10 Year

Atlona® Power Over Ethernet Mid-Span Power Supply

Model #: AT-PS-POE
135255
Model #: AT-PS-POE
Atlona
$99,999.00

Call for Best Price

At a Glance

The Atlona AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows two PoE-powered products to work together. The power supply features two power switches to selectively send power up- or down-stream.

Get to know this product.

The Atlona AT-PS-POE is a 48 VDC mid-span power injector designed to send remote power to HDBaseT products that operate on IEEE 802.03af Power over Ethernet. When placed within an HDBaseT transmission line, it allows two PoE-powered products to work together. The power supply features two power switches to selectively send power up- or down-stream. Both power streams can operate simultaneously. With a bandwidth of 10.2 Gbps, the power supply supports 4K/UHD resolutions, multi-channel audio formats, and offers full 3-D pass-through and passes all HDCP signals. The PS-POE is housed in a compact enclosure and can be conveniently placed anywhere between the transmitter and receiver to provide power for PoE-powered devices.

Power Source Equipment (PSE) devices have an internal power supply or plug into external power supply and provide power to the HDBaseT cable. Powered Devices (PD) receive their power from the HDBaseT cable.

The PS-POE can be used with Atlona HDVS-200 and UHD-EX Series HDBaseT endpoint devices requiring remote PoE powering, especially when used with HDBaseT-equipped products that do not provide PoE, including displays, switchers, or third-party endpoints.

Power supply for remote powering for powered devices on HDBaseT transmission lines

Supplies 48 VDC to products using IEEE 802.03af Power over Ethernet

Industry standard powering scheme for HDBaseT products

Mid-span power supply

Routes powers to up- and down-stream lines simultaneously

Saves cost by eliminating duplicate devices

Power switches for incoming and outgoing line

Power can be turned off in the direction of a non-PoE device

Sends power only in the required direction

Supports 4K/UHD signals

10.2 Gbps bandwidth power supply supports 4K/UHD resolutions, multi-channel audio formats, HDCP 2.2, and offers full 3-D pass-through

Ideal for ultra-high resolution signals

Upgrade for PoCc systems

Allows UHD-EX Series receivers to be used with PRO2HD Series or HD-CAT Series systems

Maintains ROI on legacy systems that need an additional signal extension or receiver upgrade/replacement

Low-profile, discreet enclosure

Easy insertion anywhere into HDBaseT transmission line including confined spaces

Keeps devices out-of-sight when placed in public spaces

Included accessories

User guide, 48 VDC power supply, and mounting brackets

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in residential and commercial systems

Specify, purchase, and install with confidence

Specifications

General Specs

Product Weight (lbs.)0.09
Depth (in.)2.77
Width (in.)2.87
Height (in.)0.96
Manufacturer Warranty10 Year

General

Consumption15.2W
SupplyInput: AC100-240V ~ 50/60Hz; Output: 48V/0.83A
H x W x D0.96 x 2.87 x 2.77 (inch)
Weight0.09 lbs
