Product Dimensions 84.38"h x 36"w x 7.5"d

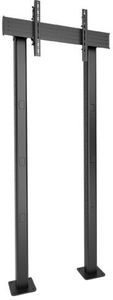

Chief's FUSION Bolt-Down freestanding solution makes it possible to install extra large displays in prominent locations.Read More
Works with displays 42 - 80" and up to 250 lbs (113.4 kg)
Bolt-down solution allows for a permanent install
Easily align displays with independent height, plumb and lateral shift adjustment
Integrated cable management for a clean installation
TAA Compliant
General Specs | |
| Depth (in.) | 7.5 |
| Width (in.) | 36 |
| Height (in.) | 84.38 |
| TV Size's up to (in.) | 80 |
| Weight Capacity (lbs.) | 250 |
| Mounting Location | Floor |
General | |
| Center of Display to Floor Table Range | 82.38" (2092 mm) (maximum top) - 16.38" (416 mm) (minimum bottom) |
| Certifications | UL Listed, TAA Compliant |
| Color | Black |
| Lateral Shift | Yes |
| Manual Height Adjustment | Micro-adjustment up to 0.75" (19 mm) per screen |
| Mounting Pattern Compatibility (Universal Versions) | 100 mm x 100 mm – 900 mm x 400 mm |
| Number Of Monitors | 1 |
| Overall Dimensions (H x W x D) | 84.38 X 36 X 7.5" (2143 x 914 x 191 mm) |
| Plumb Adjustment | Micro-adjustment up to 0.75" (19 mm) |
| Screen Array Configuration | 1 |
| Shipping Weight | 180 lbs (81.65 kg) |
| Solution Type | Universal |
| Typical Screen Sizes | 55 - 100" |
| Weight Capacity | 250 lbs (113.4 kg) |
| Orientation | Landscape |
