Designed for speed and flexibility from an ordering and installation standpoint. Chief's SYSAU Suspended Ceiling Projector System cuts installation time by one-third and includes everything needed to complete the majority of installations.Read More

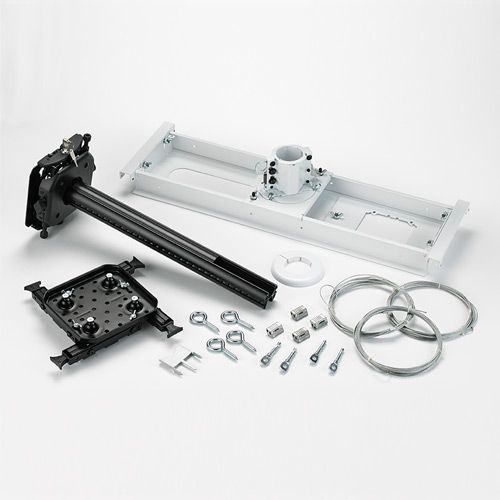

System comes out of box in the order needed with mount and column preassembled
Adjustable ceiling plate allows placement above or below tile and accommodates inconsistent T-grids. Compatible with 2' x 2', 2' x 4', 60 x 60cm, & 62.5 x 62.5cm ceiling grids
Detachable electric plate for pre-wiring. Compatible with popular 2 gang adjustable mud rings
Tool-FreeMicrozone adjustment eliminates the need for set screws
CentrisTechnology enables effortless fingertip positioning with new tool-free lockdown
Adjustable 0-12" column with dual inlay channels channels for high and low voltage cables
Q-Lock Quick Release Lever provides quick connect/disconnect ofthe projector for service and enhanced security with an integrated key and lock system
Improved universal interface for easier lock/unlock at projector connection
General Specs | |
| Depth (in.) | 24.94 |
| Height (in.) | 19.82 |
| Weight Capacity (lbs.) | 35 |
| Mounting Location | Ceiling |
General | |
| Adjustments | Roll, Pitch, Yaw (3°, 10°, 360°) |
| Certifications | UL Listed |
| Color | Black |
| Extension | 0 - 12" ( 0 - 304.8 mm) |
| Overall Dimensions (H x W x D) | 19.82" x 7.25" x 24.94" (503.5 x 184.2 x 633.6 mm) |
| Shipping Weight | 19.60 lbs (8.89 kg) |
| Solution Type | Universal |
| Weight Capacity | 35 lbs (15.9 kg) |
