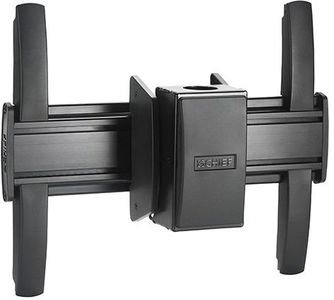

Chief® FUSION™ Black Medium Flat Panel Ceiling Mount


Model #:

MCM1U

Model #: MCM1U
127190
Chief
$386.00

At a Glance

Product Dimensions 16"h x 20.82"w x 6.37"d

Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect TV positioning and flexible adjustments for medium flat panel screens.Read More

$386.00

People also viewed:

Get to know this product.

Product Overview

Product Overview

Great for digital signage installations

Ceiling plate and extension column are required and must be ordered separately

Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column systems

See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility

See CPA ceiling plates and CPA columns for pin connection compatibility

Provide aesthetic covering to the rear side of the displays, components and mount using the Chief Fusion Universal Back Covers.

Continuous tilt ranges with four set locking points to eliminate guess work when adjusting multiple screens

Simple on/off connection for ease of installation and service

Effortlessly adjust display using Centris fingertip tilt technology.

Mount swivels to any preferred viewing angle. Set screws lock in desired angle.

Tool free screen engagement with optiona padlock security.

Compatible with any VESA pattern within a 400 x 400 mm range

Useful Documents
Specifications

General Specs

TiltYes
Depth (in.)6.37
Width (in.)20.82
Height (in.)16
Weight Capacity (lbs.)125
Mounting LocationCeiling

General

AdjustmentsRoll, +/- 3°
CertificationsUL Listed
ColorBlack
Mounting Pattern Compatibility (Universal Versions)200mm x 100mm - 460 x 400mm
Number Of Monitors1
Shipping Weight17.08 lbs (7.75 kg)
Tilt+5°, - 20°
Typical Screen Sizes32 - 65"
Weight Capacity125 lbs (56.7 kg)
OrientationLandscape, Portrait
WarningProposition 65 Warning for California Residents
