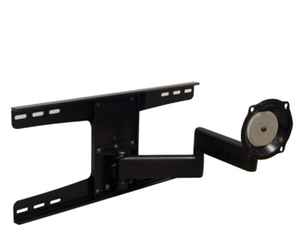

Chief® Medium Black Flat Panel Swing Arm Wall Mount
At a Glance
Product Dimensions 13.0"h x 26.0"w x 3.4"d
Easily installs a Chief Dual Swing Arm Wall Mount to 16", 20" or 24" on-center steel studs.Read More
$636.00
Product Dimensions 13.0"h x 26.0"w x 3.4"d
Easily installs a Chief Dual Swing Arm Wall Mount to 16", 20" or 24" on-center steel studs.Read More
Mounts a dual swing arm to 16", 20", or 24" on-center steel studs
Centris Technology provides smooth, fingertip tilt in any direction
Smooth extension over 20" (517 mm) to achieve the ideal viewing angle
Folds in close to the wall for a low-profile appearance
Quick, easy cable management
All mounting hardware included
VESA® 100 x 100 mm, 200 x 100 mm and 200 x 200 mm compatible (interface brackets available for non-VESA compliant displays)
General Specs | |
| Color/Finish Name | Black |
| TV Size's up to (in.) | 43 |
| Mount Type | Full Motion (Articulating) |
| Mounting Location | Wall |
| Compatible Vesa Sizes | 100 x 100mm - 400 x 400mm |
| Number Of Mounts | 1 |
| Tilt | Yes |
| Weight Capacity (lbs.) | 75 |
| Width (in.) | 26.0 |
| Depth (in.) | 3.4 |
| Height (in.) | 13.0 |
General | |
| Maximum Extension | 20.4" (518.2 mm) |
| Notes | Depth and Extension do not include interface bracket (may add 0" - 0.5" of depth) |
| Overall Dimensions (H x W x D) | 13.0" x 26.0" x 3.4" (331 x 660 x 87mm) |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Tilt | + 15° , - 15° |
| Typical Screen Sizes | 20 - 43" |
| Wall Stud Compatibility In | Metal Studs,16, 24 |
| Orientation | Landscape |
