Chief® White Speed-Connect Universal Above Tile Suspended Ceiling Camera Mount Kit

Chief

Model #:

CMS446

Model #: CMS446
939000
Chief
$165.00

At a Glance

Product Dimensions 1.3"h x 8"w x 23.4"d

Speed up suspended pro AV camera installations with the CMS446 Ceiling Tile Kit. Designed with the installer in mind, the CMS446 features a WireVice Cable Suspension System allowing for a quick tie-off and an all-point security system to protect against theft.Read More

$165.00

Get to know this product.

Product Overview

Product Overview

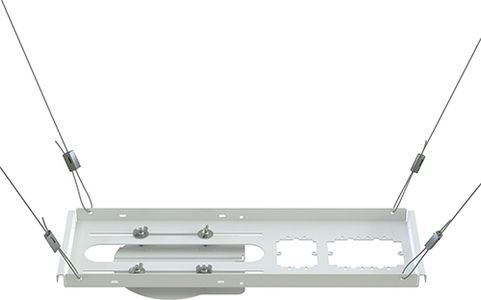

Speed up suspended pro AV camera installations with the CMS446 Ceiling Tile Kit. Designed with the installer in mind, the CMS446 features a WireVice Cable Suspension System allowing for a quick tie-off and an all-point security system to protect against theft. Each kit fits 24” (600 mm) wide ceiling tile grids and includes (4) 25’ flexible cables, (4) wood eyebolts, (4) concrete anchors and a chrome trim ring.

Kit includes CMS440 with added camera plate.

Fits most camera solutions under 20 lbs with 1/4" 20 thread mounting holes

WireVice Cable Suspension System for quick and easy tie-off

Single and dual electrical outlet cutouts to add power

All-Points Security System provides exclusive locking hardware at camera plate connection point to protect against theft

Includes (4) 25' flexible cables, (4) wood eyebolts, (4) concrete anchors and a chrome trim ring

Fits 24" (600 mm) wide ceiling tile grids

1.5" NPT compatible

Useful Documents
Installation Instructions
Technical Drawing
Specifications

General Specs

ColorWhite
Depth (in.)23.4
Width (in.)8
Height (in.)1.3
Color Finish NameWhite
Width (cm)20.3
Height (cm.)3.2
Depth (cm.)59.5

General

ColorWhite
Overall Dimensions (H x W x D)1.3" x 8.0" x 23.4" (32 x 203 x 595 mm)
CertificationsTÜV Certified, UL Listed
Weight Capacity20 lbs
WarningProposition 65 Warning for California Residents
