Product Dimensions 1.33"h x 6.55"w x 4.3"d
Crestron® Multi-type Cresnet Distribution Block with parallel distribution and 3 different types of connectorsRead More
Provides a convenient termination block for Cresnet® control wiring.

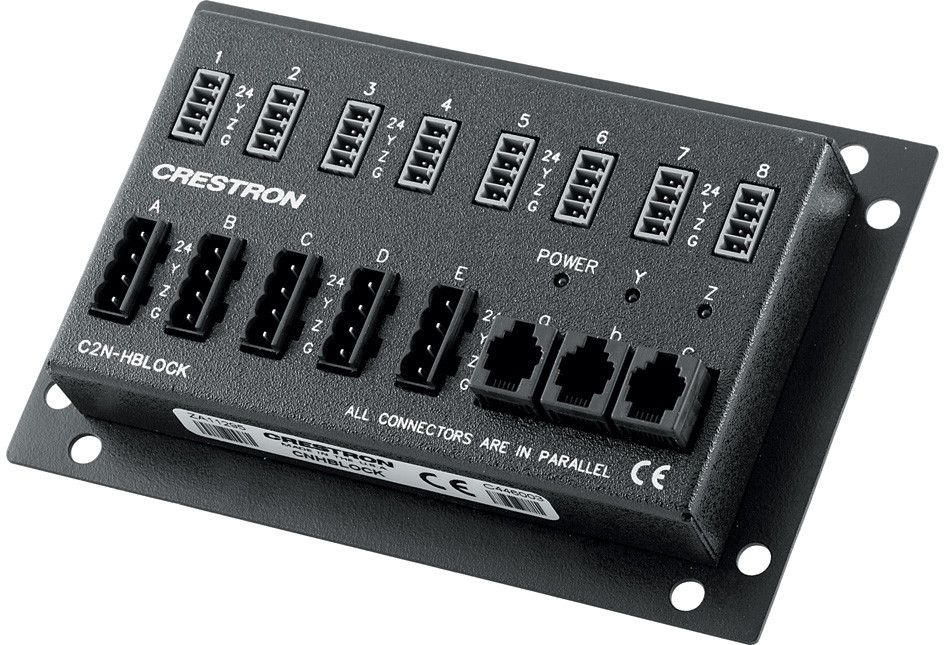

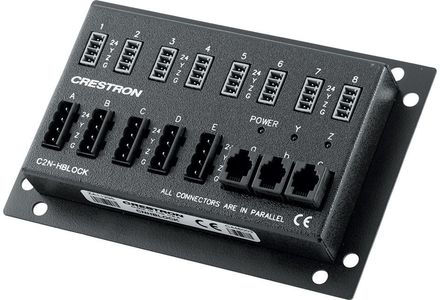

The C2N-HBLOCK is a parallel distribution block for termination of multiple Cresnet® cables. Three different types of connectors are provided to accommodate all types of Cresnet wiring including standard 4-wire Cresnet cable, Cresnet "High-Power" cable, and RJ11 modular cables. Diagnostic LEDs indicate presence of network power and data. A mounting plate (included) provides for standalone surface mounting. Up to three units may be rack mounted together using the optional CNXRMAK rack mount kit (sold separately).The C2N-HBLOCK is designed for transparent communications between all connected Cresnet devices and the control system. Multiple units may be cascaded for expanded connectivity.
General Specs | |
| Depth (in.) | 4.3 |
| Width (in.) | 6.55 |
| Height (in.) | 1.33 |
| Product Weight (lbs.) | 10.9 |
Connections | |
| Connector Type: | Terminal Blocks |
