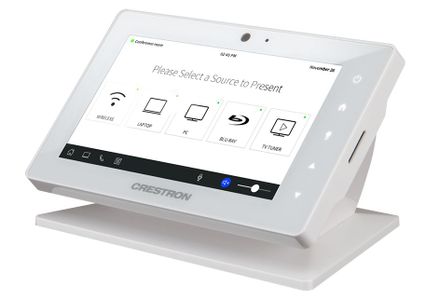

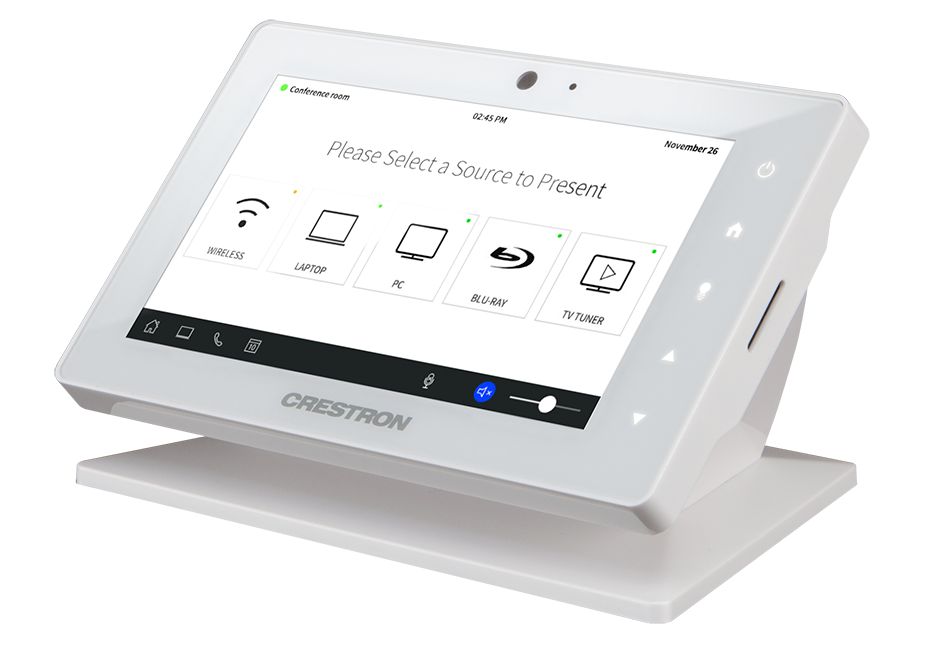

Crestron® Tabletop Kit-White Smooth

A stylish, versatile tabletop mounting kit for the TSW-560 Touch Screen.

The TSW-560-TTK provides a stylish and convenient tabletop enclosure for a TSW-560 Touch Screen. The touch screen is angled when installed in the enclosure. The complete assembly may be placed on any flat, level surface.An optional swivel mount accessory (TSW-560/760/1060-SMK) is available separately and provides a means for permanently mounting the enclosure while retaining the ability to rotate it for optimal positioning. The swivel range can be customized using optional limit screws, with a maximum of 330-degree rotation allowed. The swivel mount may be installed on any flat table, desk, or counter top surface with a thickness of 1 inch (25 mm) minimum to 1 3/8 inch (35 mm) maximum.Wiring may be passed out the rear of the enclosure through a grommet and strain relief, or routed through the bottom for a very clean, cordless appearance. The rear wire opening can accommodate a single cable up to 1/4 inch (6 mm) diameter such as standard CAT5. The bottom opening measures 29/32 inch (23 mm) diameter, while the swivel mount can accommodate wiring up to 11/16 inch (17 mm) diameter.

Key Features

• Converts a TSW-560 to a stylish 5” tabletop touch screen
• Provides a 38° fixed operating angle
• Allows permanent mounting using the optional swivel mount kit
• Provides the choice of a rear or bottom wire exit

*Table Top Mounting Kit only, TSW-560 Touch Screen sold separately.
