Product Dimensions 3.9"h x 4.8"w x 4.8"d

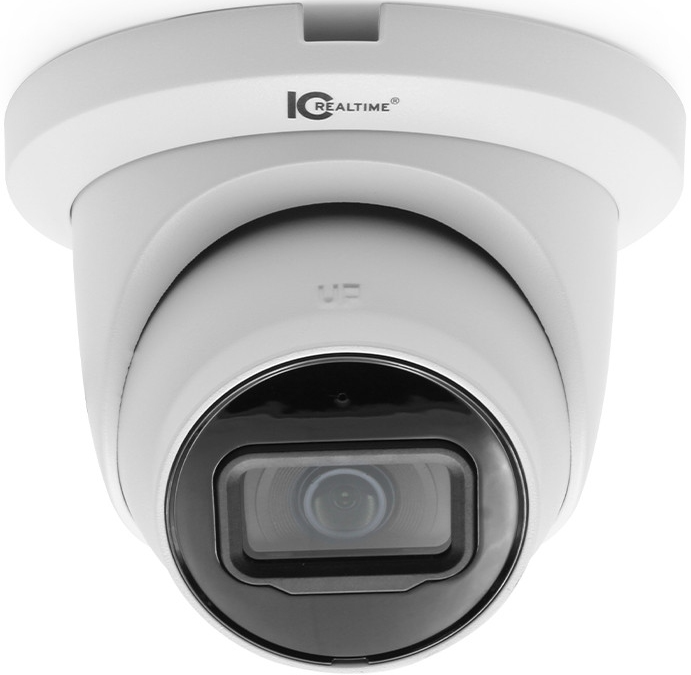

The ICR-200H-V2 is the newest version of IC Realtime’s venerable 1080p AVS eyeball turret camera. The camera’s upgraded 2.8mm lens features Starlight and Super Adapt support, up to 196 feet of IR support, and 130dB true WDR. This enables the most optimal image under the most challenging lighting conditions.Read More
There is no coax camera more successful than IC Realtime’s ICR-200 series. They have become our most popular coax eyeball domes for good reasons: steadily upgraded to meet the latest video standards, they are cost-effective and easy to mount, aim and maintain with their sealed “cam ball” and base & shroud design, and they deliver no-latency HD Starlight video & audio indoors and out 24/7. Being the most dependable coax camera series we have ever sold helps, too!
The ICR-200H4W-V2’s tough white exterior looks the same as the original H4W, but inside, the camera, “guts” have been upgraded to include the latest algorithmic exposure controls. This cutting-edge tech complements the camera’s extraordinary 130dB WDR to adjust every Starlight video frame for maximum clarity in real time (of course!) before adding it to the camera’s video stream. Our most modern image management tech is now the core of this classic coax design.
HDAVS technology also means our coax cameras can “talk to” an IC Realtime HDVR to send video, audio & camera control signals or transmit alarm signals without additional wires - just like a network camera - and achieve real-time transmission on two conductor UTP wires early 1,000 ft. and even 2600 ft. for 1080P HD video via coax.
Self-heating in cold climates and sun-bucking white in warmer climates, the ICR-200H4W-V2’s sealed metal “cam ball” is the secret to its dependable performance. The two half-spheres screw together like a cap on a jar for the tightest seal available. Weather is a constant challenge for outdoor-rated cameras, and the ultra-dependable “cam ball” design also now graces many of our cutting-edge PTZ cameras due to its inherent toughness.
ICR-200H4W-V2 is built with a 10 Year Limited Warranty for hard service dependability and easy installation & serviceability for new installations or coax camera upgrades & replacements. The camera’s HDAVS system adapts under its CVBS setting to work with legacy standard analog video systems (like guard monitors) and for HD Coax signals under its AVS, TVI and AHD settings, and uses 12VDC.
ICR-200H4W-V2’s no latency video & audio makes it perfect for existing gate & entryway security systems that demand high dependability HD video & audio monitoring, and ideal for replacing old existing low-resolution coax analog cameras in warehouses, waiting rooms, and schools. If you need dependability & audio/video excellence in a cost-effective metal-cased coax camera, ICR-200H4W-V2 is the best & longest warranty answer in the business.
General Specs | |
| Frame Rate | 30 |
| Color/Finish Name | White |
| Width (in.) | 4.8 |
| Depth (in.) | 4.8 |
| Height (in.) | 3.9 |
| Number Of Cameras Included | 1 |
| Built-in Microphone | Yes |
| Outdoor Approved | Yes |
| Manufacturer Warranty | 10 Year |
| Smart Compatible | Yes |
| Product Weight (lbs.) | .95 |
Specifications | |
| Angle of View: | H: 109°; V: 58 |
| Power Supply: | 12V DC ±30% |
| Power Consumption: | Max 5.1 W (12 V DC, IR on) |
