James Loudspeaker® Mono 1000W Subwoofer Amplifier

Model #: M1000

At a Glance

The James M1000 mono subwoofer amplifier is a 2U, high efficiency, class D design producing over 1000W of RMS power into both 4 ohm AND 70 volt loads. The M1000 is a hybrid design with an internal linear power supply to provide large reserve current to the class D output stage, ensuring powerful dynamics and tight bass response.

WarningProposition 65 Warning for California Residents
James Loudspeaker® Mono 1000W Subwoofer Amplifier

Connections

Analog Audio(RCA) Output1

Specifications

Signal to Noise Ratio100dB Sub/ 91dB LFE

General Specs

Depth (in.)14.25
Height (in.)3.5
Impedance4 Ohms/70V
Width (in.)19
Channels1
Analog Audio(RCA) Input1
Manufacturer Warranty3 Year
Watts per Channel (Watts)1000
Color Finish NameBlack
Product Weight (lbs.)26.52
ColorBlack

James Loudspeaker® Mono 1000W Subwoofer Amplifier

Model #: M1000
27784
Model #: M1000
James Loudspeaker
$99,999.00

Call for Best Price

At a Glance

The James M1000 mono subwoofer amplifier is a 2U, high efficiency, class D design producing over 1000W of RMS power into both 4 ohm AND 70 volt loads. The M1000 is a hybrid design with an internal linear power supply to provide large reserve current to the class D output stage, ensuring powerful dynamics and tight bass response.

Get to know this product.

The James M1000 mono subwoofer amplifier is a 2U, high efficiency, class D design producing over 1000W of RMS power into both 4 ohm AND 70 volt loads. The M1000 is a hybrid design with an internal linear power supply to provide large reserve current to the class D output stage, ensuring powerful dynamics and tight bass response. A full feature DSP front end can be configured via the 5-button controller and 2-line display on the front panel. Firmware updates can be uploaded via the USB connector.

On the rear, inputs include left/right high-level binding posts for use with speaker output signals, left/right RCA and Left/right balanced XLR's. A pair of left/right RCA outputs provide buffered zero gain signals to feed other amplifiers - useful for connecting multiple M1000's in home theater applications or an additional 70V stereo amplifier in 70V landscape applications.

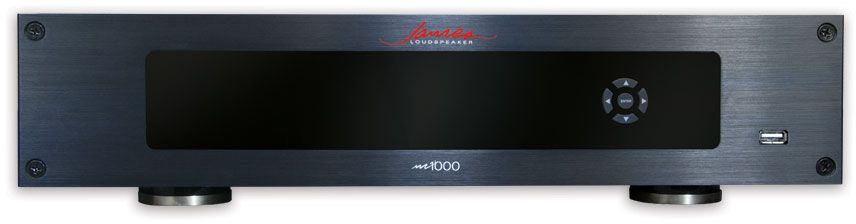

A smoked front panel display hides the LED indicators which actually use printed words for "Power", Standby", "Clip" and "Signal". The "Clip" indicator show amplifier clipping, or when the limiter is set, show the amplifier is limiting. The "Signal" indicator flashes on very low input signals to indicate the presence of any input signal - great for troubleshooting.

Within the DSP, the user can save up to 3 complete setups, which can be recalled via the front panel or via IR codes - great for unique setting for movies or music for example.

Specifications

Number of Channels: 1

Built-in DSP: Yes

Nominal Power Output: 1000 WRMS <1% THD (4 ohms/70V)

Typical Power Output: 1080 WRMS <1% THD (4 ohms/70V)

THD at Full Power: 0.07%

THD at 1W: 0.08%

Frequency Response: 10-2kHz

Frequency Response (LFE): 10-160Hz

S/N Ratio: 100dB Sub/ 91dB LFE

Output Noise: 1.5mV Sub/ 2mV LFE

Input Sensitivity (RCA): 220 mV

Input Sensitivity (XLR): 220 mV

Input Sensitivity (High Level): 2.6 V

Line Output: 200mV (Approx. 0 dB Gain)

Auto Off Time: Adjustable 5 - 30 Mins 5 Mins Steps

Auto-on Sensitivity: 3.2 mV

AC Power Req: 115V/230V switchable

Height: 3.5 in (88.90 mm)

Width: 19 in (482.60 mm)

Depth: 14.25 in (361.95 mm)

Rack Spaces: 2U

Net Weight: 26.5 lbs (12.02 kg)

Shipping Weight: 30 lbs (13.61 kg)
