Stealth Acoustics LRg Series 8" Invisible In Wall or In Ceiling Speaker

Product Overview

The LR8G may be installed in either the wall or ceiling and on-site finishing options include latex paint, light wallpaper, fabrics and selected texture coats. There is no need for special vellums or other nonstandard wallboard finishing materials. Advanced finishing methods such as Venetian plaster and select veneers are supported using special techniques.

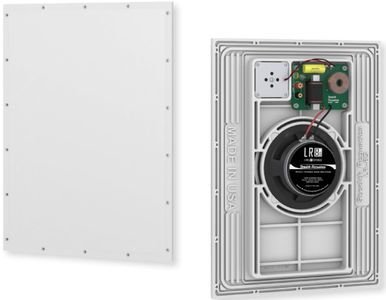

The Stealth Acoustics LR8G incorporates an acoustically coupled high quality, high-power 8” cone woofer and a direct coupled 25 mm neo-magnet high-frequency motor. Advanced internal carbon fiber materials allow for smooth frequency extension to 20 kHz. When the LR8G is installed in standard insulated 2” x 4” framing and allowed to function in a full 8 foot stud bay, frequency response below 40 Hz can be achieved. The LR8G contains two independent protection circuits (high-frequency and low-frequency sections) that automatically reset upon reduction of excessive amplifier power.

Installation instructions are shown on a paper overlay that is to be removed before installation. The overlay can also be used as a cutting template for retrofitting the speakers into existing wallboard.

Recommended Uses

Distributed Audio

Cinema Surround

Sound Masking

Best for in-wall or in-ceiling installations
