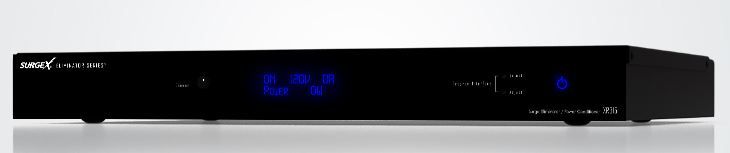

SurgeX Rack Mount Surge Eliminator and Power Conditioner

SurgeX

Model #:

XR-315

Model #: XR-315
362668
SurgeX
$99,999.00

At a Glance

Product Dimensions 1.75"h x 19"w x 10.5"d

Home theater and residential applications require clean, safe power to perform at their peak. Utilizing the proper home surge protector and power conditioner products is a small price to pay to safeguard this valuable equipment from the unforeseen consequences of power surges and electrical line noise.Read More

Call for Best Price

Get to know this product.

Product Overview

Product Overview

Non-sacrificial components

Magnetic shielding steel enclosure<

Thermal circuit breaker overload protection

Self-test circuit with visual indicator

9’ grounded 3-wire cord

SurgeX is used in many of the top arenas, stadiums, and concert halls that absolutely can't afford equipment downtime, and require clean power for pristine AV performance.

Featuring Advanced Series Mode power protection and conditioning, SurgeX home power surge protection safeguards connected equipment from surges, spikes, electrical transients, and noise that can affect AV performance and cause equipment downtime. It is the only technology that eliminates surge energy up to 6,000 Volts does not produce ground contamination to ensure optimal performance.

Expect the same level of reliability, quality and performance as the Pros with SurgeX, the best power protection for home theater systems.

Useful Documents
Product Sheet
Manual
Warranty
Specifications

General Specs

Product Weight (lbs.)11
Depth (in.)10.5
Width (in.)19
Height (in.)1.75
Number Of Outlets8

General

Load Rating15A
Voltage Rating120V
Power Requirement (No Load)15 W
Surge Let-Through Voltage (6000 Volt Surge)0 Volts
Maximum Applied Surge Voltage6000 Volts
Maximum Applied Surge CurrrentUnlimited (due to current listing)
Maximum Applied Surge EnergyUnlimited (due to current listing)
Endurance (C62.41-1991 category B3 Pulses)1 KV > 500,000; 3 KV > 10000; 6 KV > 1000
Under-Voltage Auto ShutdownAdjustable from 90V to 110V. Default 90V
Over-Voltage Auto ShutdownAdjustable from 130V to 150V. Default 150V
Over-Current Auto ShutdownCircuit Breaker
Voltage+-2% Typical Product Accuracy
Current+-1A
Power+-120W
Auxiliary Relay Outputs2 x Screw Terminal
Contact Closure Input2 x Screw Terminal
Dimensions1.75" H x 19" W x 10.5" D
Weight11 lbs
Temperature Range5C to 35C
Humidity Range5% to 95% R.H. Non-Condensing
Agency ListingsConforms to UL Std 1283 and 1449, Certified to CSA Std C22.2 No.8
WarningProposition 65 Warning for California Residents
